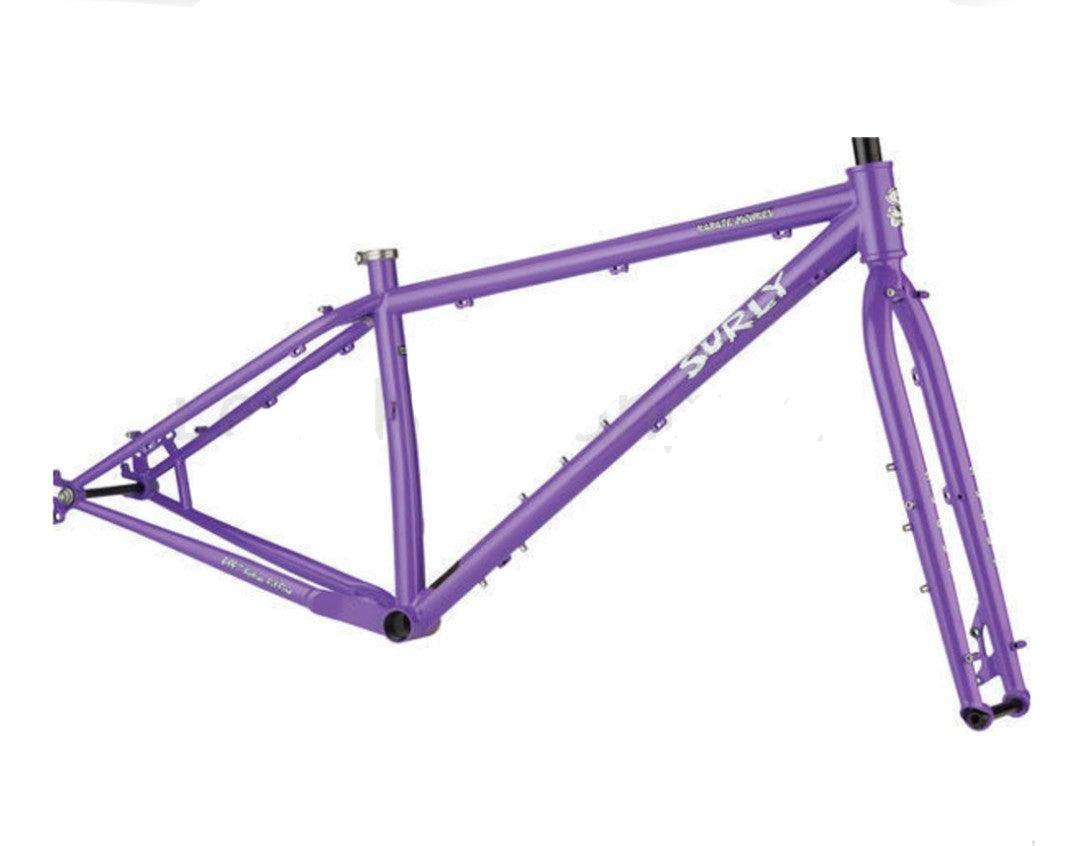

Karate Monkey delivers a resilient, lively ride on all sorts of gnarly terrain. Its frame is a highly-versatile canvas for whatever dirty masterpiece your brain cooks up. According to our computing machine (Thor) it can be set up in approximately 487 different configurations.
Originally designed as a 29er (and the frame that helped spark the 29” wheel movement), the latest Karate Monkey is designed to perform just as admirably as a 27.5+ rig as well. This allows you to pick your poison — provided your poison is having a really great time while permanently donning a shit-eating grin, of course.
Specifications
-
- Frame Construction: 4130 Chromoly, Natch tubing, double-butted main triangle, trumpet flared tubes, TIG welded, ED coated
- Fork Construction: 4130 Chromoly, Natch tubing, double-butted tapered fork blades, TIG welded, ED coated
- Rear Dropout Configuration: Horizontal slotted with optional vertical dumpout)
- Rear Hub Spacing: “Gnot-Boost” 145mm
12 x 142mm or 12 x 148mm
10 x 135mm with Surly 10/12 Adapter Washers (not included) - Rear Hub Spacing: “Gnot-Boost” 145mm
12 x 142mm or 12 x 148mm
10 x 135mm with Surly 10/12 Adapter Washers (not included) - Front Hub Spacing: 15 x 110mm
- Rear Brake: Disc: 51mm I.S. (203mm max rotor)
- Front Brake: Disc: 51mm I.S. (203mm max rotor)
- Front Hub Spacing: 15 x 110mm
- Rear Brake Disc: 51mm I.S. (203mm max rotor)
- Front Brake: Disc: 51mm I.S. (203mm max rotor)
- Head Tube Dia: 44mm
- Steerer Tube Dia: 28.6mm (1-1/8″)
- Crown Race Dia: 30mm (1-1/8″)
- Stock Headset Upper (S.H.I.S): ZS44/28.6
- Stock Headset Lower (S.H.I.S): EC44/30
- Seat Collar Dia: 33.1mm
-
- Seatpost Dia: 30.9mm
Additional Info
- Country of Origin: Taiwan
- Imported By: Happy Earth Enterprises LLP , 3/8 Ground Floor , Opp. MG Infant School , Bilekahalli , Bengaluru – 560076 , India.
- Net Quantity: 1N
- Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore – 560041. Ph: (080)47183232, Email: [email protected]
- Commodity: Framesets
| Size | L |
|---|
