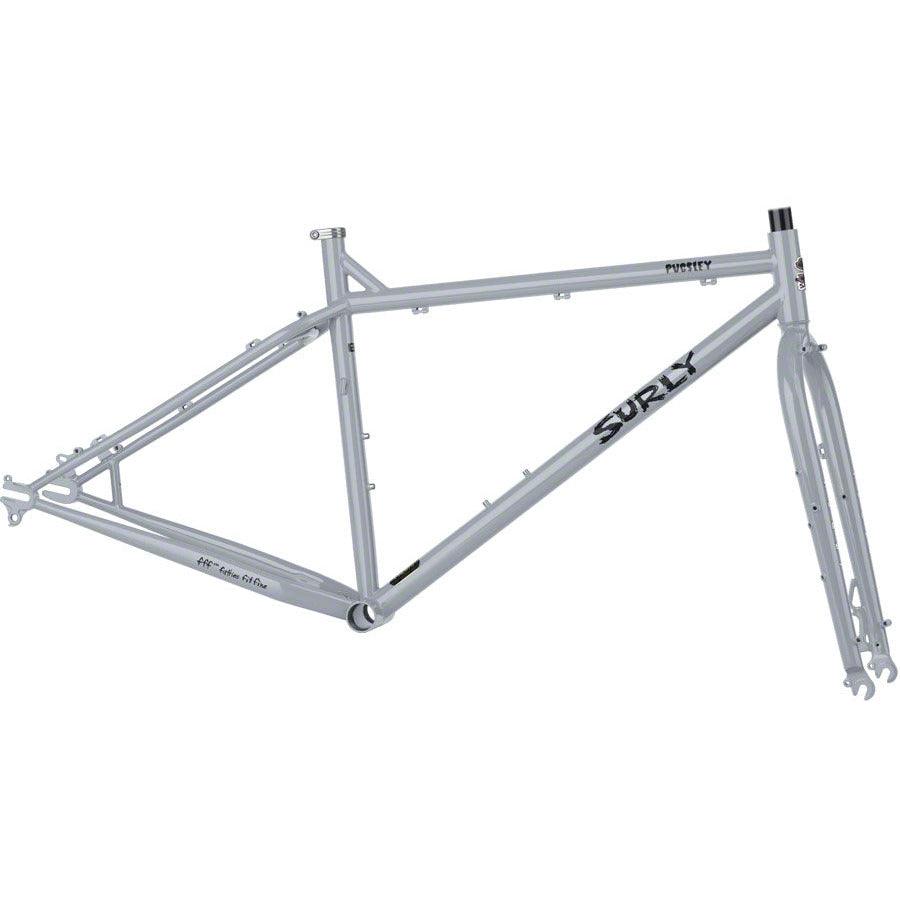

BestSelling Surly Pugsley Frameset (Space Grey) – Don’t Miss Out!

Way back in twenty-aught-three, we found ourselves tired of riding over the same old sorts of terrain. We wanted to go over there but the trail only went over here. We wanted to go for long rides on the beach. We wanted to get our float on in the winter. It was quite the Conundrum. Seeing as there wasn’t a bike that could do all those things, we made one. Thus, the Pugsley was born and set free unto the world to wreak havoc on previously unridden territory. Since that time, the Pugsley (and fat bikes in general) have evolved quite a bit. So, allow us to re-introduce you to Pugsley.

Previously a great all-around fat bike, the Pugsley has been redesigned to be the ultimate off-road touring and exploration rig. Maximalist off-road tourists, explorers looking to get off the beaten path, and survivalists for whom being stranded isn’t an option will all appreciate Pugsley’s wider footprint, longer and more stable wheelbase, and plethora of accessory mounts. In the rear, Pugsley now more closely resembles the rest of our dirt touring models with a few quirks of its own. It has a 142 x 12mm rear dropout with a dedicated Rohloff torque arm slot. If you’d rather run a standard 135mm quick-release setup, Surly 10/12 Adapter Washers allow you to do so. It still has the 17.5mm offset that Pugsley is known for but we’ve also offset the rack mounts. Rear racks now fit centered over the tire the way the dark lord intended. But what good is a rack if you kick your pannier every pedal stroke, right? To mitigate that, we lengthened Pugsley’s chainstays by 12mm. That extra 12mm also equates to extra stability and improved handling.

Pugsley’s 135mm-spaced fork has the same 17.5mm offset as the rear. This helps with wheel swapability when the shit really hits the fan. And trust us, the shit will hit the fan. Throw an extra freewheel on the front hub and make the ‘ol switcheroo if you find yourself with a blown rear freehub or mangled derailleur. Any bike will get you out there. Pugsley will get you home. If you’re looking for 4.8” tire clearance to match the rear, you can easily swap the stock fork with a Moonlander fork to make it so. You should know that doing so negates wheel swapability so if the shit does hit the fan, you might just find yourself covered in shit.

Features

GEOMETRY

	XS	SM	MD	LG	XL
Seat Tube Length (Center-Top)	326.5	376.5	427	478	529
Top Tube Length (Center-Center)	552.9	558.1	573	591.3	613
Effective Top Tube Length (Center-Center)	560	580	600	620	640
Head Tube Angle	69.5	69.5	69.5	69.5	69.5
Seat Tube Angle	73.0	72.0	72.0	72.0	72.0
BB Drop	65	65	65	65	65
Chainstay Length	460	460	460	460	460
Wheelbase	1076	1085.7	1106.4	1127.1	1147.8
Standover Height	733.5	762	793.5	825.5	857
Head Tube Length	100	115	130	145	160
Fork Length	447	447	447	447	447
Fork Offset	43	43	43	43	43
Stack	572.5	586.5	600	615	629
Reach	385	390	405	420	436

Additional Info

• Country of Origin: China
• Imported By: Happy Earth Enterprises LLP , 3/8 Ground Floor , Opp. MG Infant School , Bilekahalli , Bengaluru – 560076 , India.
• Net Quantity: 1N
• Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore – 560041. Ph: (080)47183232, Email: [email protected]
• Commodity: Framesets
