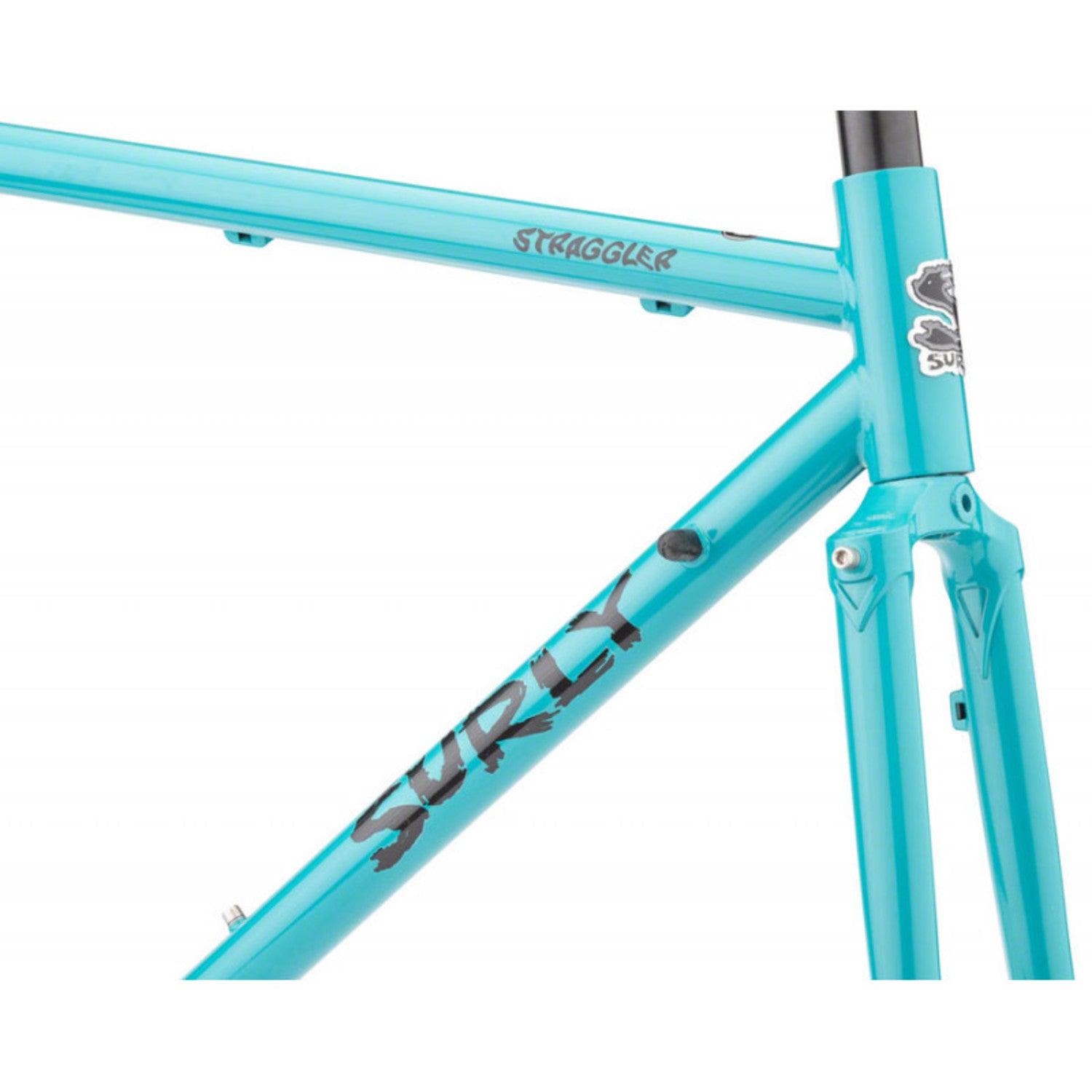

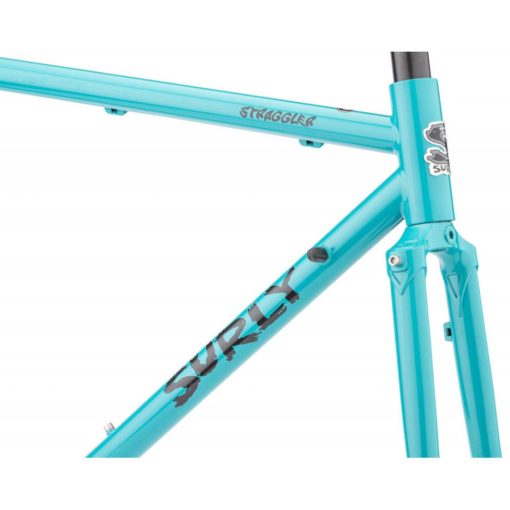

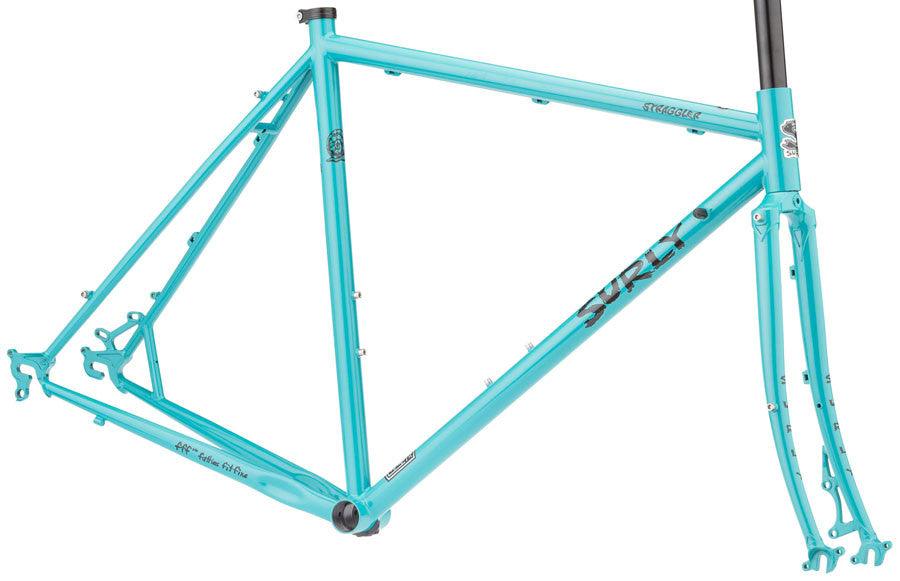

Best-Selling Surly Straggler Frameset 700c (Chlorine Dreams) – Almost Sold Out!

The most obvious difference of course is that the Straggler has disc caliper mounts instead of rim brake studs. It’ll accept rotors up to 160mm. The rear dropouts are unique, too. They’re a partially closed horizontal design that accommodates singlespeed or geared drivetrains. They feature stop screws that thread in from the rear to further secure the wheel and to position the rear wheel for optimal shifting, plus a forward-mounted stop screw on the drive side to keep the wheel from slipping forward under the force of your gargantuan legs. The rear dropouts are spaced 135mm instead of 132.5mm like the Cross-Check simply because there are far more options for disc hubs in this spacing.

Straggler shares all of the Cross-Check’s braze-ons for fenders, racks and bottle cages. The Straggler’s geometry is slightly different, with angles and tube lengths very close but not identical to the Cross-Check, but like the Cross-Check it’s ready to take you just about anywhere. It’s a day tripper and a weekender. It’s a ‘rough road’ road bike. It’s a cyclocross bike with no pretense about racing. It’s a utilitarian townie. It’s a light-duty touring bike. It’s an all-weather commuter. And when you get tired of one set up, you can swap parts around and turn it into something else. We think that’s pretty neat.

FRAME HIGHLIGHTS

GEOMETRY

	52cm	54cm	56cm	58cm	60cm	62cm
Seat Tube Length (Center-Top)	520.0	540.0	560.0	580.0	600.0	620.0
Top Tube Length (Center-Center)	546.3	563.3	579.7	593.2	608.0	623.0
Effective Top Tube Length (Center-Center)	550.0	565.0	580.0	595.0	610.0	625.0
Head Tube Angle	72.0	72.0	72.0	72.0	72.0	72.0
Seat Tube Angle	73.5	73.0	72.5	72.5	72.0	72.0
BB Drop	72.0	72.0	72.0	72.0	72.0	72.0
Chainstay Length	425.0	425.0	430.0	430.0	430.0	430.0
Wheelbase	1006.0	1016.5	1031.9	1047.0	1056.8	1071.8
Standover Height	777.3	791.7	809.4	828.7	846.1	865.0
Head Tube Length	91.0	107.0	121.0	146.0	165.0	185.0
Fork Length	400.0	400.0	400.0	400.0	400.0	400.0
Fork Offset	44.0	44.0	44.0	44.0	44.0	44.0
Stack	534.0	549.2	567.3	591.1	609.1	628.2
Reach	390.8	396.3	400.7	408.2	412.1	420.9

Additional Info

• Country of Origin: China
• Imported By: Happy Earth Enterprises LLP , 3/8 Ground Floor , Opp. MG Infant School , Bilekahalli , Bengaluru – 560076 , India.
• Net Quantity: 1N
• Customer Care Address: 291, 10 Main, 5 Block, Jayanagar, Bangalore – 560041. Ph: (080)47183232, Email: [email protected]
• Commodity: Framesets
